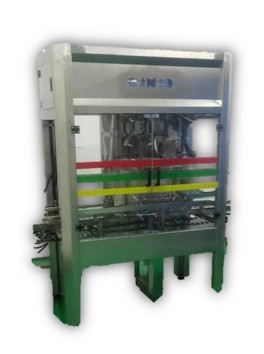

The BY-DLDC-1000 Automatic Delabeller & Decapper machine is
designed by BY to remove and discards caps from empty big barrel (3, 5
gallon and so on) and at the same time to separation of sleeve labels on
The specific design of the machine by combining two functions (Delabelling
& Decapping) in an automatic machine leads to a reduction in production
time and manpower and ultimately leads to a significant cost reduction. In
addition, it reduces the total machine footprint.
The system is equipped with PLC which allows system to service with
high speed, accurate positioning, high degree of automation and long service
- Overall dimensions (L*W*H): 700 x800x1700mm,
- Voltage: 220~240Vac
50Hz, single phase, 3 wires,
- Power consumption: 2.5 kw
- Instrument air pressure (Pneumatic
input): 0.6 Mpa to 0.8 Mpa.
