product was discontinued to be replaced by upgraded model BY-NX-2

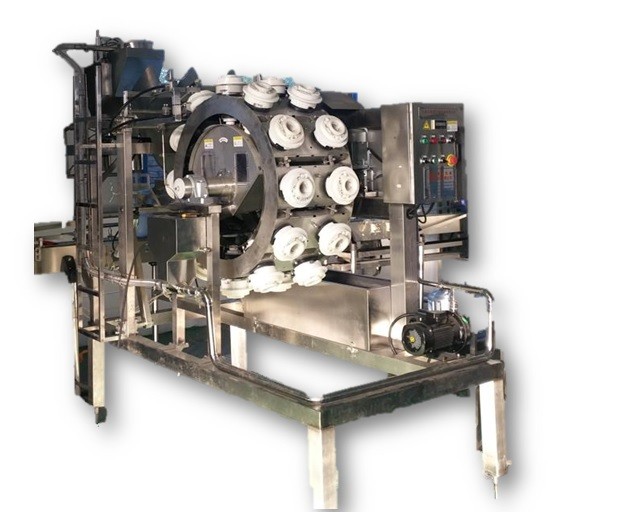

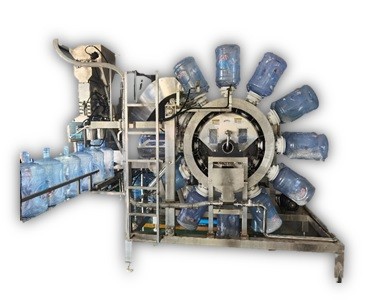

Fully automatic particle friction 5 Gallon /19 liter Bottle internal washing machine
BY-NX-2000 as fully automatic particle friction internal washing machine designed to assist in automatic washing big bottles (5 gallon / 19 liter bottle , 3 gallon , etc.) safely, fast and cost-effective in bottled water plants.
Machine functions and features:
BY-NX-2000 fully automatic particle friction washing machine, which is featured by: the cleaning of the packaging barrel uniform radiation arrangement around the main rotating disk, the main rotating disk in the rotation at the same time, the surrounding packaging barrel is also rotating, in the unwashed packaging barrel into the appropriate amount of friction particles, due to the rotation of the main rotating disk and the packaging barrel, so that the friction particles and the inner side of the packaging barrel friction, so as to achieve a comprehensive cleaning of the inner side of the package. Compare BY-NX-2000 automatic particle friction washing machine with the brush-type packaging barrel washing machine, to avoid the dead corner caused by brush cleaning, barrel cleaning thoroughly, clean, easy to multi-unit combination, solve the problem that packaging barrel inside difficult to clean, with simple structure, easy installation, smooth operation, easy maintenance and so on.
Particle Friction Washing Technology
Usage particle friction technology for washing in combination with simultaneous rotation of barrels in two axes including rotating the barrel in line with the main axis of the machine (main drum) as well as rotating the barrel around its axis, provides full access to all corners of the barrel for washing machine.
Main technical data:
Model/Name: BY-NX-2000 /Fully automatic particle friction
internal washing machine
Dimension (length*width*Height): 3200*1750*2250 mm
Barrel size:18.9
liters (5 gallons) can be customized
Power supply: three-phase four-wire 380V~400V
Air pressure: 0.6MP
Power consumption: 2.3KW
capacity: 1800-2000 barrel/hour
Net Weight: 550kg
Transportation:
Export standard packaging: wooden case
Port: Tianjin port or other assigned port
