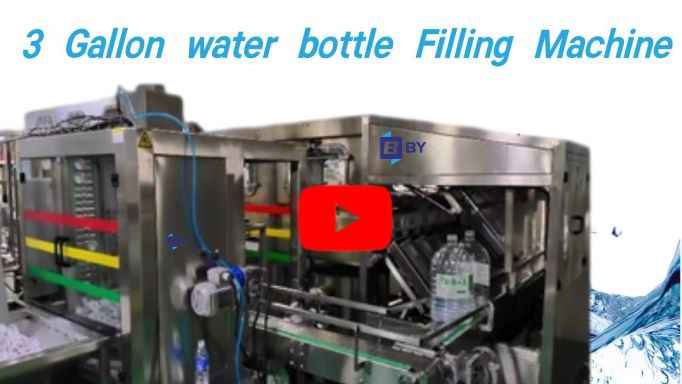

BY-XGF-450, Automatic 3 gallon Filling Machine

Description

XGF-450, Automatic 3 Gallon (10 liter) ~ 5 gallon (19 liter) Filling Machine

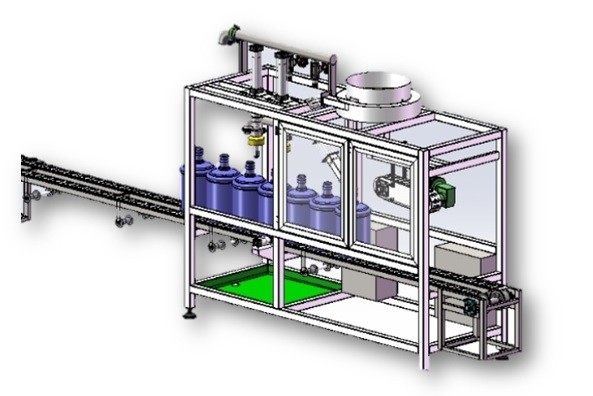

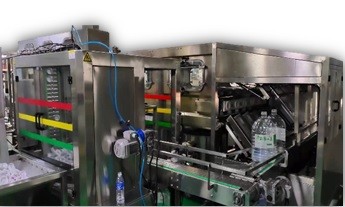

The XGF-450 3 Gallon (10 liter) / 5 gallon (19 liter) Filling System is designed by BY to provide compact solution for 3~5 gallons drinking water production. The machine integrates washing, filling and capping functions. It is an ideal equipment for mineral water, packaged drinking water and pure water production.

Stainless steel componentry throughout makes the device corrosion resistant and easy to clean.

For the main electrical components we use high quality well-known international brand such as Mitsubishi and OMRON, and AirTAC products from Taiwan are used for the pneumatic system. The machine designed compact with small foot print with high efficiency, stability, reliable and high level of automation makes it suitable solution for plant with limited space. Only one operator needed, is 1 in all automatic filling equipment.

Main technical data:

Type No.:             BY-XGF-450

Filling capacity:     450 BPH

Barrel:                  3 gallons

Bucket size:           ∮225*370

Voltage:                380~440Vac, 50Hz

Power:                  3 KW,

Weight:                 180 Kg

Dimensions:           2080*730*1800 mm

Transportation:

Export standard packaging: wooden case

Port: Tianjin port or other assigned port
