Description

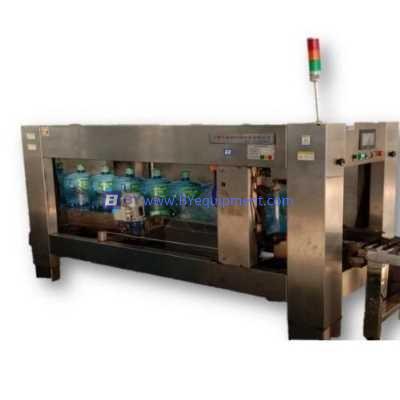

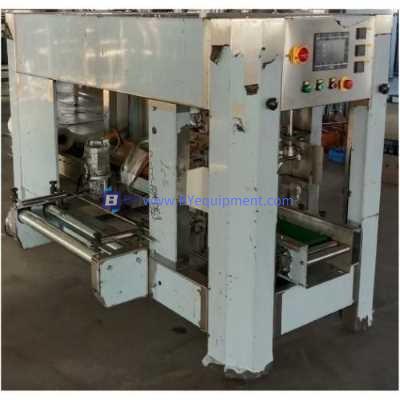

Automatic 5 Gallon / 19 liter Bottle Bagging Machine
The BY-TB-2000 bagging machine is designed and patented by BY to bag & seal the big barrel (5 gallon and so on) automatically. Entire roll film encapsulation, effectively keep the external cleaning and not being damaged.
The automatic operation with high success rate of film sealing, firm structure, stable performance, simple operation and easy maintenance make BY-TB-2000 the perfect solution for water plants.
When the "film feeding", the "feed", the "bags," and the "sealing" are all completed automatically, greater efficiency is achieved, and a docking station can operate unmanned.
Thermostatic sealing knife with Teflon anti-stick coating alloy, sealing temperature is very precise and easy to set, sealing wire is not easy to crack, no edges, more beautiful sealing.
With the cooperation between the electric eye and the timer, length can be automatically adjusted by the automatic feeding system.
The sealing knife has a unique safety device which will immediately stop all movement when mistakenly cut into the packaging, it will not damage the packaging.
Equipment special features:
- 1. The whole equipment does not need any instrument air to operate, which significantly reduces the failure rate of equipment operation;

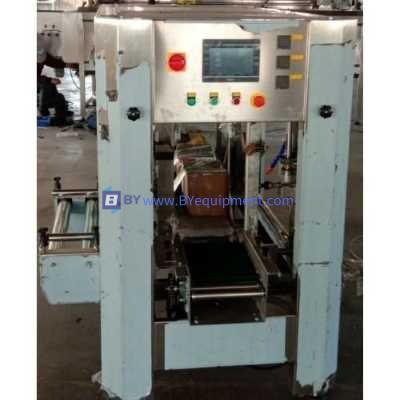

- 2. HMI touch screen operating system, with alarm function for various malfunctions;
- 3. Systems include a sealing film, a copper hot (sealing) knife, and a heating system for the knife holder, which are safe, energy-efficient, and durable;
- 4. Feeding barrels, belts and power roller conveyors suitable for all filling production lines;
- 5. CNC servo cutting, roller power out of the barrel mechanism, high accuracy, speed and low failure rate when sealing film;
- 6. Forced-type film opener and hanger to prevent falling films during equipment operation;
- 7. The control system of the tension and film mechanism using photoelectric detection, double roller linkage.
Main technical data:
Voltage: 380~440Vac 50Hz, three phase, five wires
Power consumption: 3 kw
Sealing speed: 1500~ 2000 BBL/h
Equipment specification (L*W*H): 3000*1260*1700mm,
conveyor belt level: 550mm from ground level.
Application:
5 gallon barrel or customized barrel (uniform specifications are required).
Applicable film specifications:
Membrane material: PO (Propylene Oxide)
Double side opening of ring film;
The whole roll film length is 700-720mm
Single layer thickness of film 0.006-0.015mm;
The maximum diameter of the whole roll film: Ø 350 mm, no static (refer to electrostatic agent 3%) wrapped tight, winding barrel diameter greater than Ø 80 mm.
Transportation:
Export standard packaging: wooden case
Port: Tianjin port or other assigned port
