Description

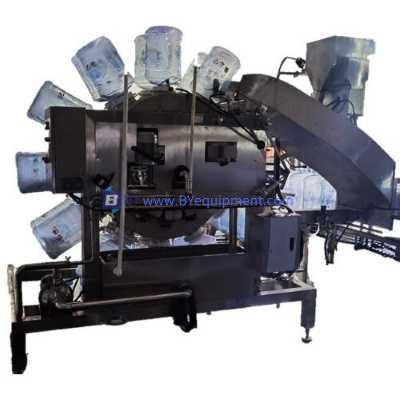

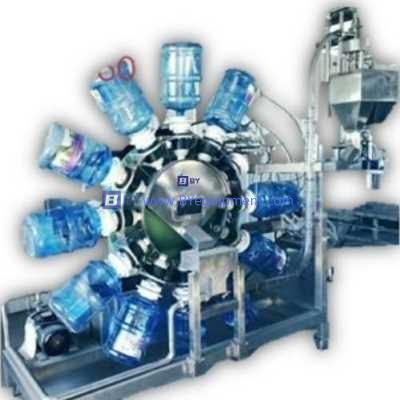

Fully automatic particle friction 5 Gallon Bottle internal washing machine (BY-NX-1 )
BY-NX-1 as fully automatic particle friction internal washing machine designed to assist in automatic washing bottles safely, fast and cost-effective in bottled water plants.
The BY-NX-1 is BY's entry-level particle-friction internal washer, built for small water bottling operations processing up to 500 bottles per hour. It uses dual-axis rotation — the main disk and the bottle both spin — so washing particles reach the full interior surface without the dead zones common in brush-only systems. Ideal for startups and small plants upgrading from manual washing.
Machine functions and features:
BY-NX-1 fully automatic particle friction washing machine, which is featured by: the cleaning of the packaging barrel uniform radiation arrangement around the main rotating disk, the main rotating disk in the rotation at the same time, the surrounding packaging barrel is also rotating, in the unwashed packaging barrel into the appropriate amount of friction particles, due to the rotation of the main rotating disk and the packaging barrel, so that the friction particles and the inner side of the packaging barrel friction, so as to achieve a comprehensive cleaning of the inner side of the package. Compare BY-NX-1 automatic particle friction washing machine with the brush-type packaging barrel washing machine, to avoid the dead corner caused by brush cleaning, barrel cleaning thoroughly, clean, easy to multi-unit combination, solve the problem that packaging barrel inside difficult to clean, with simple structure, easy installation, smooth operation, easy maintenance and so on.
Particle Friction Washing Technology
Usage particle friction technology for washing in combination with simultaneous rotation of barrels in two axes including rotating the barrel in line with the main axis of the machine (main drum) as well as rotating the barrel around its axis, provides full access to all corners of the barrel for washing machine.
Main technical data:
Model/Name: BY-NX-1 /Fully automatic particle friction internal washing machine
Cleaning capacity: 450~500 BPH
Barrel: 18.9 liters (5 gallons) can be customized
Voltage: 380~440Vac
Power: 2.3 kW
Air Consumption: 0.2-03 m/min
Air pressure: 0.6 ~ 0.8 Mp
Water consumption: 100L (recycle)
Dimensions (L*W*H): 1900*1100*2400 mm
Weight: 550 Kg
