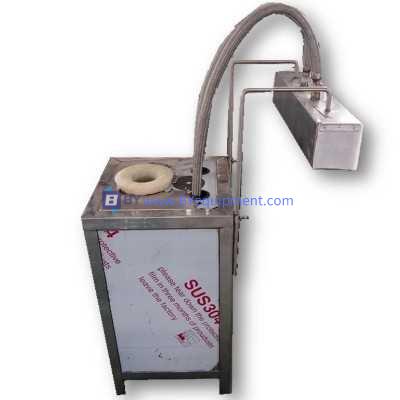

BY-RS-900 Steam Shrink Tunnel can be used on all types of big bottles ( 5, 10, 19 liter /3~5 gallon) to heat shrink, and conform plastic label sleeves without creating bubble marks. This machine is made of stainless steel. Though it has been available for a long time in the market, we have continued to improve its design and can claim that we offer the best, most reliable steam tunnel for big bottles on the market today. We have used this machine on a wide variety of label materials including PVC – Polyvinyl Chloride (PVC), Polypropylene Terephthalate Glycol (PETG), Oriented Polystyrene (OPS), PLA – Polylactide, or Polylactic acid, and different sizes and received great feedback from clients.
We are proud to say that the BY-RS-900 Steam Shrink Tunnel Machine is being used in more than 300 manufacturing plants in the world.
Our self-contained steam generation process is used to apply sleeves or tamper-proof seals to your bottles. This machine is built with quality stainless steel over the conveyor design. This Steam Tunnel can easily fit into your existing production line or act as a stand-alone unit.
- perfect shrinkage.
- Prevents bubble marks
- Built to accommodate bottles of multiple sizes and shapes.
- Adjustable nozzles provide the option to redistribute steam when a new bottle is needed.
Main technical data:
Type No.: BY-RS-900
Filling capacity: 900BPH
Voltage: 380~440Vac 50Hz
Power: 3 KW,
Water consumption: 4L/h
Dimensions (L*W*H): 600*400*900 mm
Weight: 57 Kg
Export standard packaging: wooden case
Port: Tianjin port or other assigned port
