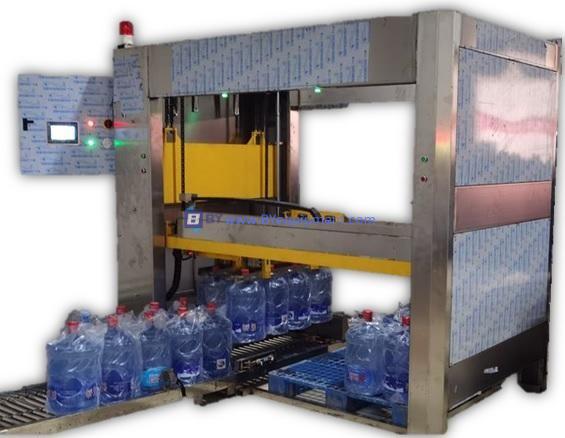

BY-SPZ-1000 Semiautomatic 5 Gallon Bottle palletizer machine

Description

Semiautomatic 5 Gallon Bottle palletizer machine

BY-SPZ-1000 Semiautomatic palletizer machine was designed for 5 gallon barrel palletizing is in drinking water production line. BY-SPZ-1000 can improve the water factory production effective and reduce labor cost. The machine palletize the finished 5 gallon bottle water automatic and easy unload.

Main features:

• 100% machine designed for heavy-duty application ( 5 gallon bottle) palletizing.
• Very simple and reliable machine
• The machine is managed by a Touch screen control panel.
• The machine is provided with an overload safety device.
• The price, compared to robots, is very competitive.

We could provide customized machine according to the customers’ requirements .

Main technical data:

Type No.: BY-SPZ-1000

Filling capacity:     1000~1500 BPH

Barrel:                  5 gallons

Bucket size:           ∮225*370

Voltage:                220Vac, 50Hz

Power:                  3 KW,

Air Consumption:   0.2-0.3 m/min

Air pressure:         0.4 ~ 0.8

Weight:                 850 Kg

Dimensions:           2630*1630*2410 mm

Transportation:

Export standard packaging: wooden case

Port: Tianjin port or other assigned port
