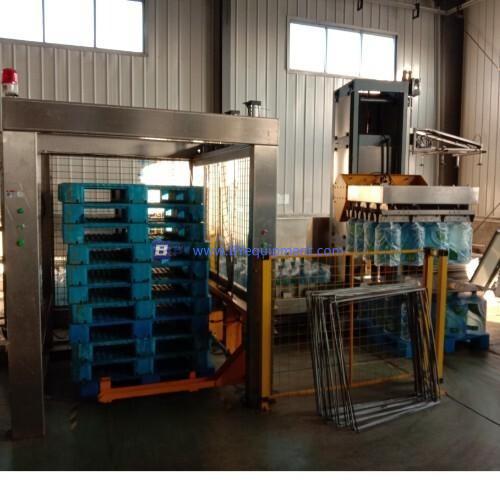

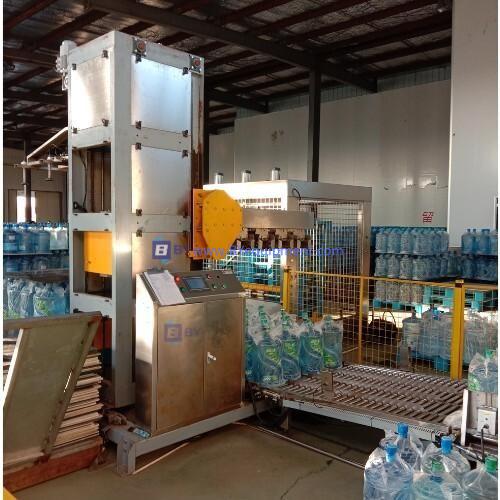

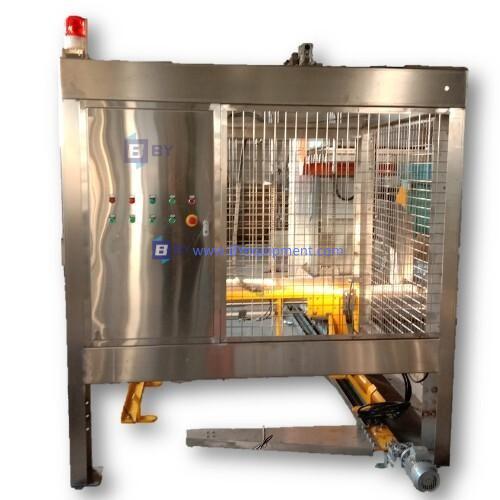

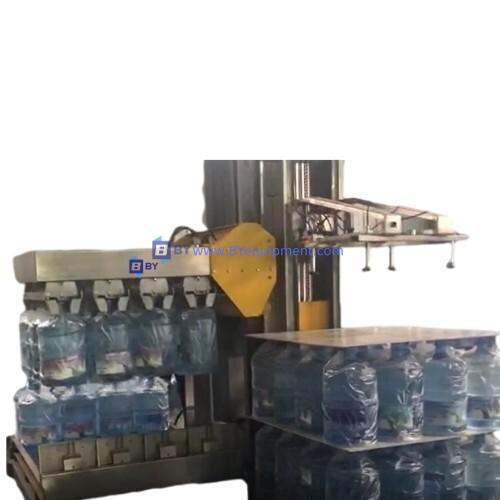

BY-MD-XZ-2000 Automatic 5 Gallon Bottle palletizer

Description

Automatic 5 Gallon Bottle palletizer machine

BY-MD-XZ-2000 Automatic palletizer machine was designed for 5 gallon barrel palletizing is in drinking water production line. BY-MD-XZ-2000 can improve the water factory production effective and reduce labor cost. The machine palletize the finished 5 gallon bottle water automatic and easy unload.
We could provide customized machine according to the customers’ requirements .

Main technical data:

Type No.: BY-MD-XZ-2000

Filling capacity:     1500~2000 BPH

Barrel:                  5 gallons

Bucket size:           ∮225*370

Voltage:                380~440Vac, 50Hz

Power:                  4.5 KW,

Air Consumption:   0.8-1 m/min

Air pressure:         0.4 ~ 0.8

Weight:                 2000 Kg

Dimensions:           4800*3500*3200+ 1890*2100*2200 mm
