Description

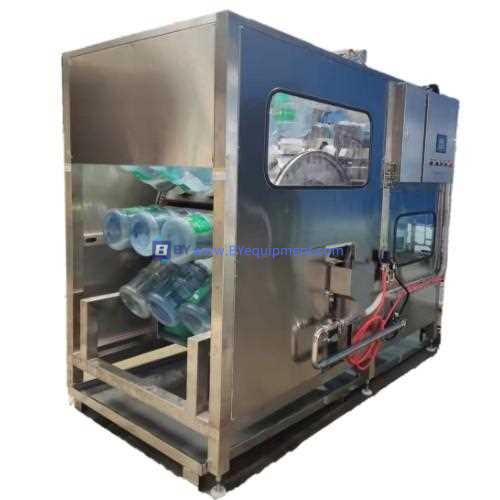

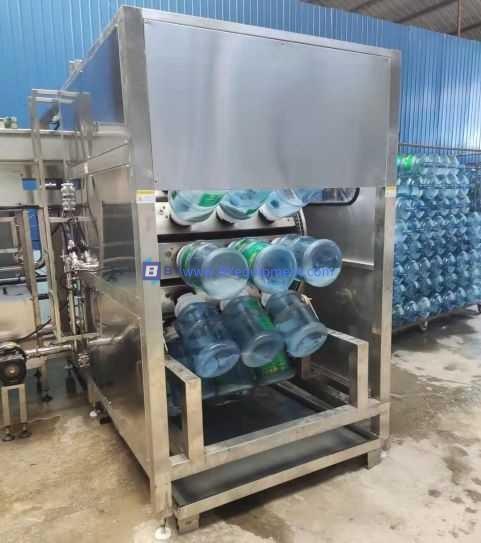

Fully automatic particle friction 5 Gallon Bottle internal washing machine
BY-NX-3 as fully automatic particle friction internal washing machine designed to assist in automatic washing bottles safely, fast and cost-effective in bottled water plants.The BY-NX-3 is BY's high-capacity particle-friction washer for large-scale bottled water plants, designed for continuous production lines. It retains the internal dual-axis cleaning method used across the NX series, scaled for the highest throughput requirement in the range.
Machine functions and features:
BY-NX-3 fully automatic particle friction washing machine, which is featured by: the cleaning of the bottle uniform radiation arrangement around the main rotating disk, the main rotating disk in the rotation at the same time, the surrounding bottle is also rotating, in the unwashed bottle into the appropriate amount of friction particles, due to the rotation of the main rotating disk and the bottle, so that the friction particles and the inner side of the bottle friction, so as to achieve a comprehensive cleaning of the inner side of the bottle. Compare BY-NX-3 automatic particle friction washing machine with the brush-type bottle washing machine, to avoid the dead corner caused by brush cleaning, bottle cleaning thoroughly, clean, easy to multi-unit combination, solve the problem that bottle inside difficult to clean, with simple structure, easy installation, smooth operation, easy maintenance and so on.
Particle Friction Washing Technology
Usage particle friction technology for washing in combination with simultaneous rotation of barrels in two axes including rotating the barrel in line with the main axis of the machine (main drum) as well as rotating the barrel around its axis, provides full access to all corners of the barrel for washing machine.
Main technical data:
Model/Name: BY-NX-3 /Fully automatic particle friction internal washing machine
Cleaning capacity: 1400~1500 BPH
Barrel: 18.9 liters (5 gallons) can be customized
Voltage: 380~440Vac
Power: 3 kW
Air Consumption: 0.5-0.6 m/min
Air pressure: 0.6 ~ 0.8 Mp
Water consumption: 400L (recycle)
Dimensions (L*W*H): 3100*3300*2400 mm
Weight: 1200 Kg
Transportation:
Export standard packaging: wooden case
Port: Tianjin port or other assigned port
