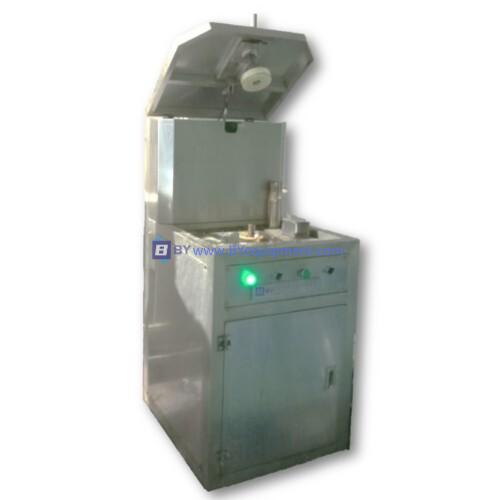

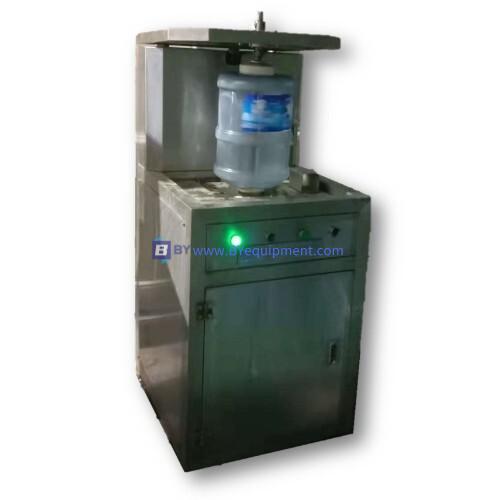

BY-NC-1 HIGH PRESSURE 5 GALLON WASHING MACHINE

Description

HPBW(High Pressure Bottle Washer) is a device which washes the inside of the bottles using high-pressure jet nozzle.

• Does your bottles huge contaminated, polluted such as dust, sticky algae, animal or insect waste, dry and soft mud?
• Does huge bottles reject every day?
• Does your water not clean and safe?
• Cannot recycle/reuse bottles?

Depending on the version, the unit is suitable for washing 18.9 L (5 gallon), 11.35 L (3 gallon) PRB or PET water bottles. Upon request, the device may also be suitable for rinsing, filling, and screw closure of other types and capacities, such as 5, 6, 10 l bottles. Once electricity, water and compressed air are connected, production can begin immediately. The machine is serviced manually, but workflows are automatic. The machine is equipped with a self-cleaning program, which facilitates daily cleaning and disinfection.

Main technical data:

Type No.: BY-NC-1

Filling capacity:     100~200 BPH

Barrel:                  5 gallons

Bucket size:           ∮225*370

Voltage:                380~440Vac, 50Hz

Power:                  4.3 KW,

Air Consumption:   0.05-0.1 m/min

Air pressure:         0.4 ~ 0.6

Water consumption: 3~8L/min

Weight:                 160 Kg

Dimensions:           630 * 740 * 1420 mm

Transportation:

Export standard packaging: wooden case

Port: Tianjin port or other assigned port
