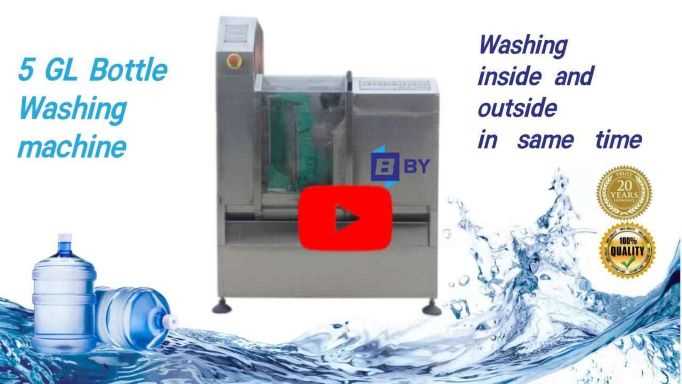

BY-SNW-1 water bottle washing Machine

Product Item：18.9 L (5 gallon) water-bottle washer (inside and

Model: BY-SNW-1

Capacity: 100~200 BPH

Operation mode: Semi-automatic

Description

Semi-automatic, 18.9 L (5 gallon) water-bottle washer (inside and outside)

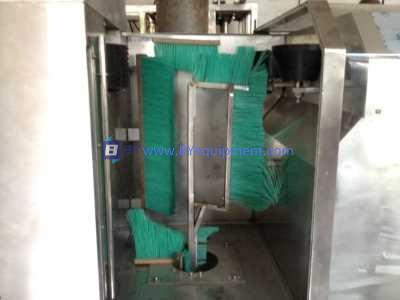

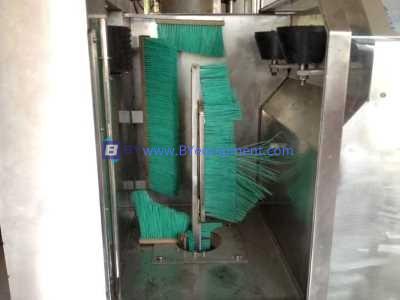

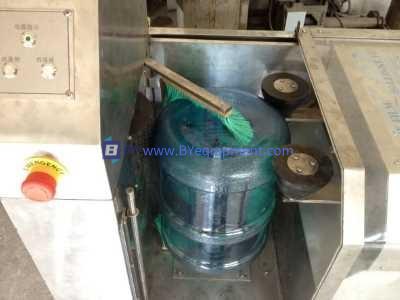

BY-SNW-1 is a Semi-automatic 5 gallon water-bottle washer/ Brusher. Depending on the version, the unit is suitable for washing 18.9 L (5 gallon), 11.35 L (3 gallon) PRB or PET water bottles. Upon request, the device may also be suitable for other types and capacities, such as 5, 6, 10 l bottles. This machine has the advantages of washing inside and outside in same time, stable capacity, good brushing effect, easy operation, easy maintenance and nice appearance. The material is made of high quality of stainless steel. The machine has long lifespan and is really with good quality and economic price. Once electricity, water and compressed air are connected, production can begin immediately. The machine is serviced manually, but workflows are automatic. The machine is equipped with a self-cleaning program, which facilitates daily cleaning and disinfection.

Main technical data:

Type No.: BY-SNW-1

Filling capacity: 100~200 BPH

Barrel: 5 gallons

Bucket size: ∮225*370

Voltage: 380~440Vac, 50Hz

Power: 0.6 KW,

Air Consumption: 0.2-0.3 m/min

Air pressure: 0.4 ~ 0.6

Water consumption: 0.4T/h

Weight: 180 Kg

Dimensions: 1685*450*1255 (985) mm
